Kirin

Kirin is the Kernel Intermediate Representation Infrastructure. It is a compiler infrastructure for building compilers for embedded domain-specific languages (eDSLs) that target scientific computing kernels.

Features

  • MLIR-like dialects as composable python packages
  • Generated Python frontend for your DSLs
  • Pythonic API for building compiler passes
  • Julia-like abstract interpretation framework
  • Builtin support for interpretation
  • Builtin support Python type system and type inference
  • Type hinted via modern Python type hints

Kirin's mission

Compiler toolchain for scientists. Scientists are building domain-specific languages (DSLs) for scientific purposes. Most scientists do not have any compiler engineering background. On the other hand, these DSLs are often high-level, and their instructions are usually slower than the low-level instructions and thus result in smaller programs. No need to generate high quality LLVM IR/native binary most of the time! So there are some chances to simplify terminologies, interfaces for the none-pros, while allowing good interactivity and fast prototyping.

For the interested, please read the Kirin's Mission blog post for more details.

Acknowledgement

While the mission and audience may be very different, Kirin has been deeply inspired by a few projects:

  • MLIR, the concept of dialects and the way it is designed.
  • xDSL, about how IR data structure & interpreter should be designed in Python.
  • Julia, abstract interpretation, and certain design choices for scientific community.
  • JAX and numba, the frontend syntax and the way it is designed.
  • Symbolics.jl and its predecessors, the design of rule-based rewriter.

Quick Example: the beer language

In this example, we will mutate python's semantics to support a small eDSL (embedded domain-specific language) called beer. It describes the process of brewing, pour, drink beers and get drunk.

Before we start, let's take a look at what would our beer language look like:

@beer
def main(x: int):
    beer = NewBeer(brand="budlight") # (1)!
    pints = Pour(beer, x) # (2)!
    Drink(pints) # (3)!
    Puke() # (4)!

    return x + 1 # (5)!
  1. The NewBeer statement creates a new beer object with a given brand.
  2. The Pour statement pours a beer for x portions into pints object.
  3. The Drink statement drinks pints object.
  4. The Puke statement pukes. Now we are drunk!
  5. Doing some math to get a result.

The beer language is wrapped with a decorator @beer to indicate that the function is written in the beer language instead of normal Python. (think about how would you program GPU kernels in Python, or how would you use jax.jit and numba.jit decorators).

You can run the main function as if it is a normal Python function.

main(1)

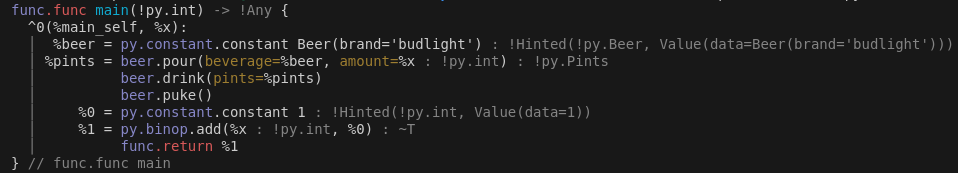

or you can inspect the compile result via

main.print()

beer-printing

Defining the dialect

First, let's define the dialect object, which is a registry for all the objects modeling the semantics.

from kirin import ir

dialect = ir.Dialect("beer")

Defining the statements

Next, we want to define a runtime value Beer, as well as the runtime value of Pints for the beer language so that we may use later in our interpreter. These are just a standard Python dataclass.

from dataclasses import dataclass

@dataclass
class Beer:
    brand: str

@dataclass
class Pints:
    kind: Beer
    amount: int

Now, we can define the beer language's statements.

from kirin.decl import statement, info
from kirin import ir, types

@statement(dialect=dialect)
class NewBeer(ir.Statement):
    name = "new_beer" # (1)!
    traits = frozenset({ir.Pure(), ir.FromPythonCall()}) # (2)!
    brand: str = info.attribute(types.String) # (3)!
    result: ir.ResultValue = info.result(types.PyClass(Beer)) # (4)!
  1. The name field specifies the name of the statement in the IR text format (e.g printing).
  2. The traits field specifies the statement's traits, in this case, it is a pure function because each brand name uniquely identifies a beer object. We also add a trait of FromPythonCall() to allow lowering from python ast.
  3. The brand field specifies the argument of the statement. It is an Attribute of string value. See PyAttr for further details.
  4. The result field specifies the result of the statement. Usually a statement only has one result value. The type of the result must be ir.ResultValue with a field specifier info.result that optionally specifies the type of the result.

the NewBeer statement creates a new beer object with a given brand. Thus it takes a string as an attribute and returns a Beer object. Click the plus sign above to see the corresponding explanation.

@statement(dialect=dialect)
class Pour(ir.Statement):
    traits = frozenset({ir.FromPythonCall()})
    beverage: ir.SSAValue = info.argument(types.PyClass(Beer))# (1)!
    amount: ir.SSAValue = info.argument(types.Int)
    result: ir.ResultValue = info.result(types.PyClass(Pints))
  1. The arguments of a Statement must be ir.SSAValue objects with a field specifier info.argument that optionally specifies the type of the argument.

Next, we define Pour statement that takes a Beer object as an argument, and the result value is a Pints object. The types.PyClass type understands Python classes and can take a Python class as an argument to create a type attribute TypeAttribute.

@statement(dialect=dialect)
class Drink(ir.Statement):
    traits = frozenset({ir.FromPythonCall()})
    pints: ir.SSAValue = info.argument(types.PyClass(Pints))

Similarly, we define Drink statement that takes a Pints object as an argument. As the same previously, the types.PyClass type understands Python classes (in this case Pints class) and can take a Python class as an argument to create a type attribute. Notice that drink does not have any return value.

Finally, we define Puke statement that describe the puke action, which does not have any arguments and no return value.

@statement(dialect=dialect)
class Puke(ir.Statement):
    traits = frozenset({ir.FromPythonCall()})

Defining the method table for concrete interpreter

Now with the statements defined, we can define how to interpret them by defining the method table associate with each statement.

from kirin.interp import Frame, Successor, Interpreter, MethodTable, impl

@dialect.register
class BeerMethods(MethodTable):
    ...

The BeerMethods class is a subclass of MethodTable. Together with the decorator from the dialect group dialect.register, they registers the implementation method table to interpreter. The implementation is a method decorated with @impl that executes the statement.

    @impl(NewBeer)
    def new_beer(self, interp: Interpreter, frame: Frame, stmt: NewBeer):
        return (Beer(stmt.brand),) # (1)!

    @impl(Drink)
    def drink(self, interp: Interpreter, frame: Frame, stmt: Drink):
        pints: Pints = frame.get(stmt.pints)
        print(f"Drinking {pints.amount} pints of {pints.kind.brand}")
        return ()

    @impl(Pour)
    def pour(self, interp: Interpreter, frame: Frame, stmt: Pour): # (2)!
        beer: Beer = frame.get(stmt.beverage)
        amount: int = frame.get(stmt.amount)
        print(f"Pouring {beer.brand} {amount}")

        return (Pints(beer, amount),)

    @impl(Puke)
    def puke(self, interp: Interpreter, frame: Frame, stmt: Puke):
        print("Puking!!!")
        return () # (3)!
  1. The statement has return value which is a Beer runtime object.
  2. Sometimes, the execution of a statement will have side-effect and return value. For example, here the execution Pour statement print strings (side-effect) as well as return a Pints runtime object.
  3. In the case where the statement does not have any return value but simply have side-effect only, the return value is simply an empty tuple.

The return value is just a normal tuple that contain interpretation runtime values. Click the plus sign above to see the corresponding explanation.

Rewrite Drink statement

Sometimes when we are drunk, we will do something that is not expected. Here, we introduce how to do rewrite on the program. What we want to do is simple:

Everytime we drink, we will to buy yet another new beer and also puke. Sounds like a drunk person will do huh.

More specifically, we want to rewrite the program such that, everytime we encounter a Drink statement, we insert a NewBeer statement, and Puke after Drink. Let's define a rewrite pass that rewrite our Drink statement. This is done by defining a subclass of [RewriteRule][kirin.rewrite.RewriteRule] and implementing the rewrite_Statement method. The RewriteRule class is a standard Python visitor on Kirin's IR.

from kirin.rewrite import RewriteResult, RewriteRule # (1)!
from kirin import ir

@dataclass
class NewBeerAndPukeOnDrink(RewriteRule):
    # sometimes someone get drunk, so they keep getting new beer and puke after they drink
    def rewrite_Statement(self, node: ir.Statement) -> RewriteResult: # (2)!
        if not isinstance(node, Drink): # (3)!
            return RewriteResult()

        # 1. create new stmts:
        new_beer_stmt = NewBeer(brand="saporo") # (4)!
        puke_stmt = Puke() # (5)!

        # 2. put them in the ir
        new_beer_stmt.insert_after(node) # (6)!
        puke_stmt.insert_after(new_beer_stmt)

        return RewriteResult(has_done_something=True) # (7)!
  1. Import the RewriteRule class from the rewrite module.
  2. This is the signature of rewrite_Statement method. Your IDE should hint you the type signature so you can auto-complete it.
  3. Check if the statement is a Drink statement. If it is not, return an empty RewriteResult.
  4. Create new NewBeer statement.
  5. Create new Puke statement.
  6. insert the new created statements into the IR. Each of the ir.Statement provides API such as insert_after, insert_before and replace_by that allow you to insert a new statement either after or before, or repalce the current statement with another one.
  7. Return a RewriteResult that indicates the rewrite has been done.

Putting everything together

Now we can put everything together and finally create the beer decorator, and you do not need to figure out the complicated type hinting and decorator implementation because Kirin will do it for you!

from kirin.ir import dialect_group
from kirin.prelude import basic_no_opt
from kirin.rewrite import Walk

@dialect_group(basic_no_opt.add(dialect)) # (1)!
def beer(self): # (2)!

    # some initialization if you need it
    def run_pass(mt, drunk:bool=True): # (3)!

        if drunk:
            Walk(NewBeerAndPukeOnDrink()).rewrite(mt.code) # (4)!

    return run_pass # (5)!
  1. The dialect_group decorator specifies the dialect group that the beer dialect belongs to. In this case, instead of rebuilding the whole dialect group, we just add our dialect object to the basic_no_opt dialect group which provides all the basic Python semantics, such as math, function, closure, control flows, etc.
  2. The beer function is the decorator that will be used to decorate the main function.
  3. The run_pass function wraps all the passes that need to run on the input method. It optionally can take some arguments or keyword arguments that will be passed to the beer decorator.
  4. Inside the run_pass function, we will traverse the entire IR and use the rule NewBeerAndPukeOnDrink to rewrite all the Drink statements.
  5. Remember to return the run_pass function at the end of the beer function.

This is it!

For further advanced use case see CookBook/Beer

License

Apache License 2.0 with LLVM Exceptions
